|Article number:||A5R VN|
|Delivery time:||Should arrive within 3 weeks|
From a piezo sound that cut through when in a mix to a warm, pure acoustic sound that is like recorded by using the vintage microphone in the recording studio, SRT2 allows you to reproduce a sound that you can really use on stage.. With SRT2 you can mix these two sounds to attain the exact balance you want to achieve a distinctive tone.. What's more, you can mix these two sounds and select two different mic types to choose the optimal sound for your playing style and for the song you are performing.. Knob (A): Volume Control. Controls output volume.. Knob (B): Treble Control. Level adjustments for the high frequency (treble) range.. Knob (C): Bass Control / AFR(Auto Feedback Reduction) [PUSH]. Level adjustments for the low frequency (bass) range.. Push this button to activate the AFR.. The system automatically detects the frequency causing feedback and applies a –12dB notch filter. . Knob (D): Blend control / mic type switch [PUSH]. Controls the mix level of signals received from the pickup and the microphone sources. Rotate fully to the left for 100% pickup signal and fully to the right for 100% simulated mic signal.. Press this switch to select the mic type used in the SRT function. . Mic Type 1: Neumann U67 Large Diaphragm Condenser Microphone. Mic Type 2: Royer R122 Active Ribbon Microphone
Extensive research with players, luthiers and guitar techs has given A-Series the feel and playability that today’s acoustic-electric players want, whether switching from electric to acoustic on-stage, recording a session with intricate open tunings, or practicing at home.. These superb guitars feature a straighter neck taper for easier high-fret playing, and hand-rolled fingerboard edges to achieve a played-in feel.
A-series has louder and stronger in the low-mid ranges thanks to cutting-edge acoustic analysis technology developed by the Yamaha R&D Division. . Their analysis led to the development of the new scalloped bracing for the top board and shorter bracing than normal for the back board.. Also, treating the top board with Yamaha's exclusive A.R.E. (Acoustic Resonance Enhancement) process gives the instrument a rich, vintage quality tone, making it sound as though you'd been playing it for year from the very first moment you pick an A-series guitar up.
A-series utilizes Elixir NANOWEB 80/20 Bronze Light strings. . These give the A-series a lively tone and extended tone life.. http://www.elixirstrings.com/guitar-strings/80-20-bronze-guitar-strings.html
The simple, organic design features wood binding and other techniques that capture the warmth of wood.. The distinctive shape of the pick guard, which stands out when performing, is a revival of the N1000 guitar that Yamaha released in 1975.

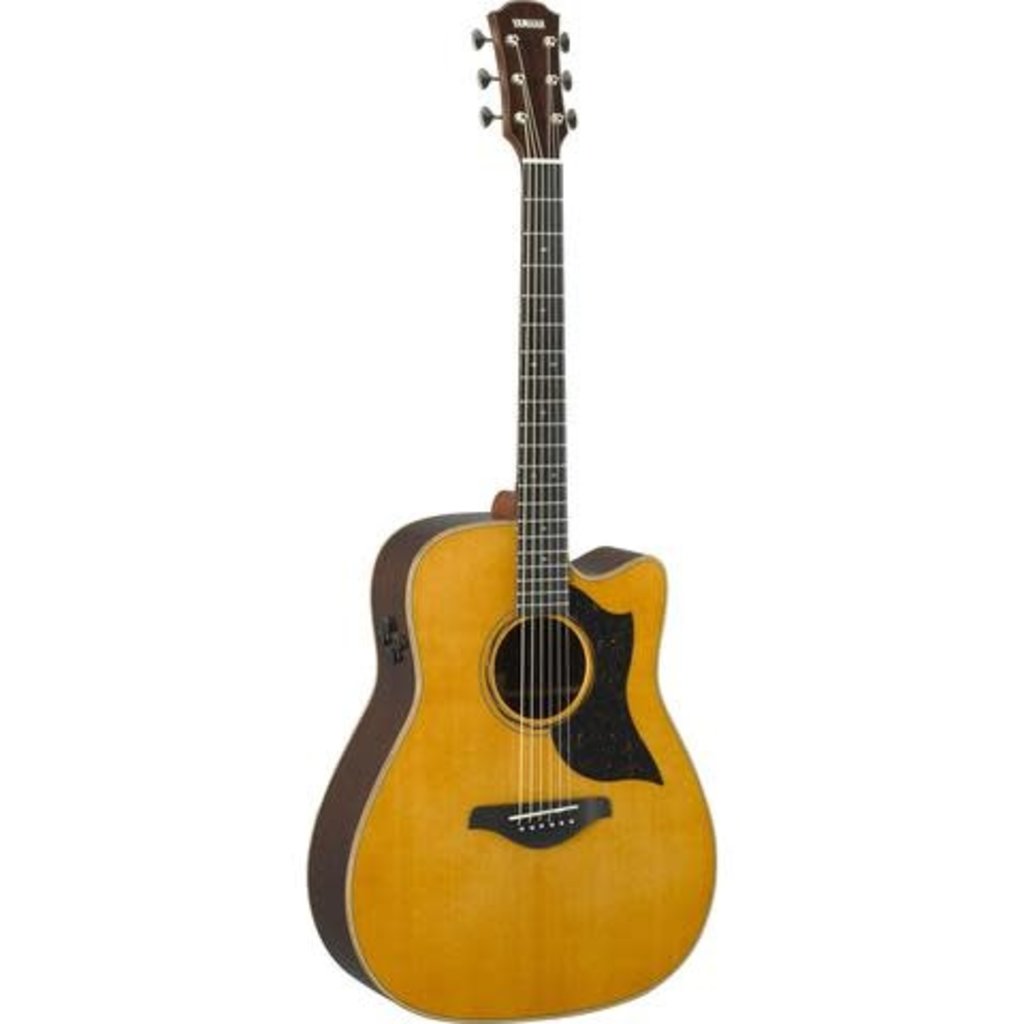

Made in Japan, the A5 is the flagship model in Yamaha A-series featuring Gotoh's renowned open-gear tuners, high-quality binding on the head, TUSQ nut and saddle etc.
|Body Shape||Traditional Western Cutaway|
|Scale Length||650mm (25 9/16”)|
|Body Length||505mm (19 7/8")|
|Total Length||1046mm (41 3/16")|
|Body Width||412mm (16 1/4")|
|Body Depth||100-118mm (3 15/16”- 4 5/8”)|
|Nut Width||43mm (1 11/16”)|
|String Spacing *||11.0mm|
|Top Material||Solid Sitka Spruce A.R.E. w/Scalloped Bracing|
|Back Material||Solid Rosewood|
|Side Material||Solid Rosewood|
|Neck Material||African Mahogany 3ply|
|Fingerboard Radius||R400mm (15 3/4")|
|Bridge Pins||Black ABS with White Dot|
|Tuners||Open Gear Chrome(Gotoh)|
|Body Binding||Mahogany + Cream|
|Soundhole Inlay||Rosewood + Mahogany + Black + White|
|Electronics||SYSTEM71(SRT2 System) + SRT Piezo Pickup|
|Controls||Vol/Mic Select(2 types)/Treble/Bass/SRT-Piezo Blend/AFR|
|Strings||Elixir NANOWEB 80/20 Bronze Light|
|Accessories||Soundhole Cover, Hex Wrench|
