| Article number: | NTX1 |
| Delivery time: | Should arrive within 3 weeks |

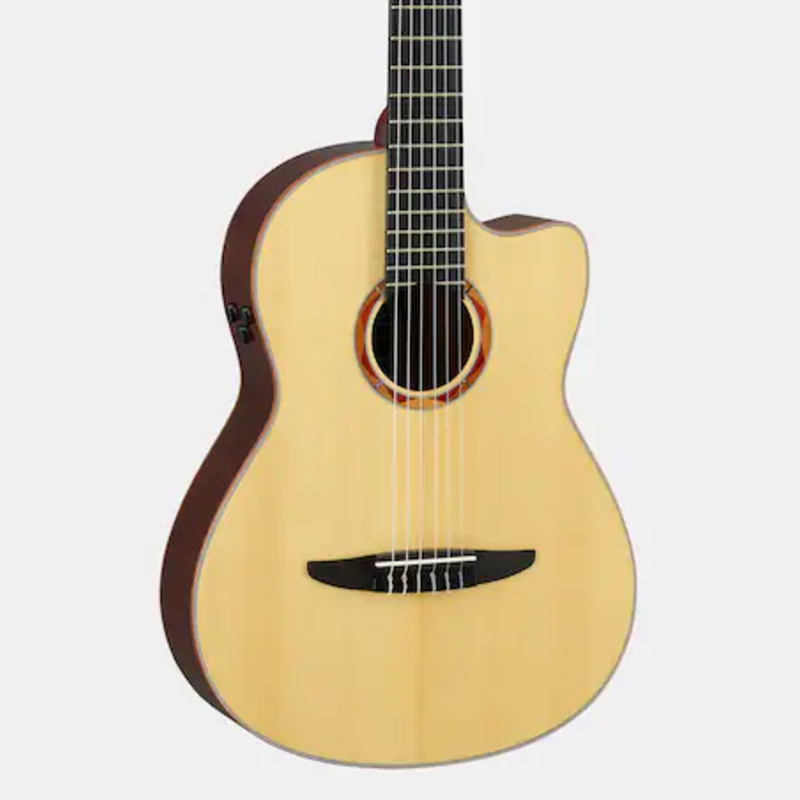

The NX Series® features contemporary body styles and proprietary preamp and pickup systems developed with the needs of live performers in mind. NX Series guitars will appeal to both accomplished nylon-string players in search of superior amplified sound, and electric and steel-string players seeking to explore the beauty of nylon-string sounds.
| Body Shape | APX Shape |
|---|---|
| Scale Length | 650mm (25 9/16”) |
| Body Length | 490mm (19 5/16") |
| Total Length | 1026mm (40 3/8") |
| Body Width | 384mm (15 1/8") |
| Body Depth | 80-90mm (3 1/8" - 3 9/16") |
| Nut Width | 48mm (1 7/8") |
| String Spacing * | 10.6mm |
| Top Material | Solid Sitka Spruce |
| Back Material | Nato or Okume |
| Side Material | Nato or Okume |
| Neck Material | Nato |
| Fingerboard Material | Walnut |
| Fingerboard Radius | R600mm (23 5/8") |
| Bridge Material | Ebony + Walnut |
| Nut Material | Urea |
| Saddle Material | Urea |
| Bridge Pins | None |
| Tuners | Chrome w/ Matt Black Shaft (RM1188NB-B06) |
| Body Binding | Black + White |
| Soundhole Inlay | Mahogany + Padauk |
| Pickguard | None |
| Body Finish | Gloss |
| Neck Finish | Matt |
| Electronics | Undersaddle 3-band EQ preamp with tuner |
| Controls | Master Vol/Bass Vol/Treble Vol/3-band EQ/Tuner |
| Connections | LINE OUT |
| Strings | Medium (Yamaha S10) |
| Accessories | Hex Wrench, 2 x AA Battery |
| Case | None |
